Our air foil bearing turbo blower systems offer minimum energy consumption and maximum efficiency thanks to their oil-free operating principle and high-speed motor technology. They are designed for a wide range of applications, from wastewater treatment plants to industrial processes.
Air foil bearings operate without contact on the air film created by the rotor’s own rotation. This eliminates the need for lubrication, minimizes mechanical friction, and extends the system's lifespan.

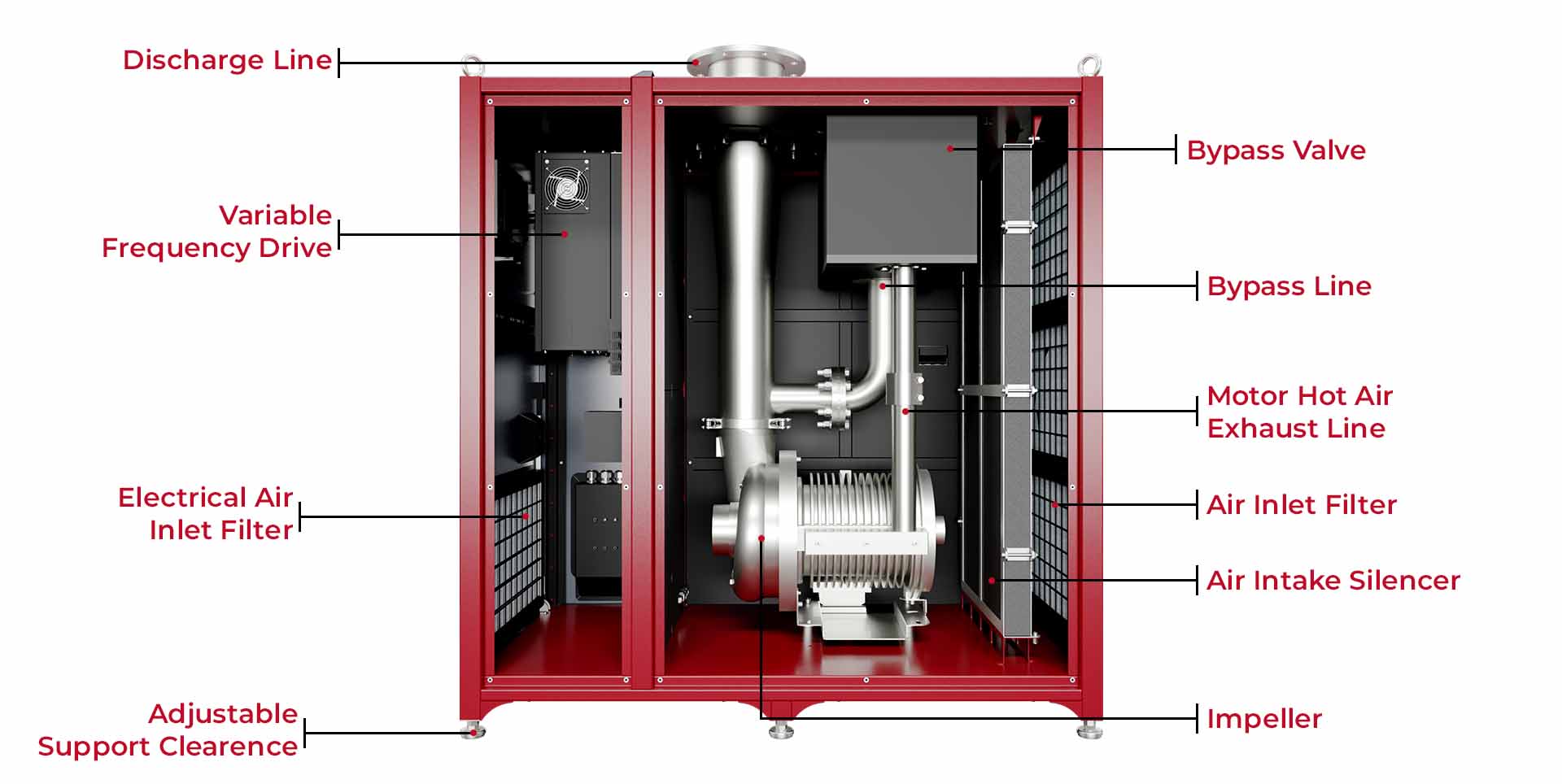

The HAUS air foil bearing turbo blower combines high-speed centrifugal compressor technology with a contactless and completely oil-free operating principle. The system features a self-balancing design driven by the airflow generated during the rotor’s rotation and operates without mechanical contact.
When the blower is activated, a high-speed electric motor directly drives the impeller. Air is drawn from the intake line into the compressor inlet and accelerated by the impeller rotating at high speeds. In the diffuser section, this kinetic energy is converted into pressure, and the air is delivered to the process at the required pressure. This aerodynamic compression principle ensures high efficiency and low energy consumption.
During operation, the rotor remains balanced without contacting the surface thanks to the dynamic air pressure generated by its own movement. Thanks to this contactless structure, there is no need for a lubrication system, friction-related losses are eliminated, and mechanical wear is minimized. As a result, the system offers a simpler, cleaner, and more reliable operating structure.
Thanks to the variable frequency drive (VFD), the blower quickly adapts to varying flow rate and pressure requirements. This feature provides significant advantages in terms of energy optimization and stable air supply, especially in processes where load changes are frequent, such as wastewater treatment plants.
The air foil bearing turbo blower contributes to the sustainability and operational cost goals of modern facilities with its compact design, low maintenance requirements, and high energy efficiency. Thanks to its oil-free and contactless operating principle, it offers a long service life and reliable performance.
HAUS Air Foil Bearing Turbo Blower systems are widely used, especially in aeration tanks of wastewater treatment plants, and offer an effective and reliable solution in many industrial processes requiring aeration.
Thanks to the advanced control infrastructure, flow rate and energy optimization can be achieved depending on the oxygen demand of the process; this increases both energy efficiency and process stability.
Technical Features and Advantages
• Up to 40% energy savings
• Oil-free and low-maintenance bearing system
• Low noise and vibration
• Compact design
• Remote monitoring and automation integration
Thanks to their air foil bearing structure, these lubrication-free systems have low maintenance and operating costs, and this advantage has been proven in field applications. Their compact design allows for easy and flexible installation in confined spaces.
HAUS Turbo Blower is offered at competitive prices, backed by domestic production and a mass production infrastructure that meets high quality standards. With its high energy efficiency and low maintenance requirements, it is an innovative solution that quickly amortizes the initial investment and sustainably increases process efficiency.
HAUS continues to develop products focused on energy saving, environmental efficiency, and advanced process technologies to support the sustainable growth of its customers.
PRODUCT MODELS
L Series air-bearing turbo blowers maximize operational efficiency in wastewater treatment and industrial ventilation processes requiring low pressure, by providing high airflow with minimum energy consumption thanks to frictionless air cushion technology.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
850x1350, H1670 mm
WEIGHT
250 kg
MAXIMUM DISCHARGE PRESSURE
800 mbar
MOTOR SHAFT POWER
22 kW
MAXIMUM PACKAGE POWER
24 kW
MINIMUM FLOW RATE
550 m³/sa
MAXIMUM FLOW RATE
1.250 m³/sa
L Series air-bearing turbo blowers maximize operational efficiency in wastewater treatment and industrial ventilation processes requiring low pressure, by providing high airflow with minimum energy consumption thanks to frictionless air cushion technology.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
950x1630, H1900 mm
WEIGHT
950 kg
MAXIMUM DISCHARGE PRESSURE
800 mbar
MOTOR SHAFT POWER
135 kW
MAXIMUM PACKAGE POWER
150 kW
MINIMUM FLOW RATE
3.300 m³/sa
MAXIMUM FLOW RATE
7.150 m³/sa
L Series air-bearing turbo blowers maximize operational efficiency in wastewater treatment and industrial ventilation processes requiring low pressure, by providing high airflow with minimum energy consumption thanks to frictionless air cushion technology.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
950x1630, H1900 mm
WEIGHT
900 kg
MAXIMUM DISCHARGE PRESSURE
800 mbar
MOTOR SHAFT POWER
115 kW
MAXIMUM PACKAGE POWER
125 kW
MINIMUM FLOW RATE
2.900 m³/sa
MAXIMUM FLOW RATE
6.000 m³/sa
L Series air-bearing turbo blowers maximize operational efficiency in wastewater treatment and industrial ventilation processes requiring low pressure, by providing high airflow with minimum energy consumption thanks to frictionless air cushion technology.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
950x1630, H1900 mm
WEIGHT
850 kg
MAXIMUM DISCHARGE PRESSURE
800 mbar
MOTOR SHAFT POWER
95 kW
MAXIMUM PACKAGE POWER
105 kW
MINIMUM FLOW RATE
2.850 m³/sa
MAXIMUM FLOW RATE
4.950 m³/sa
L Series air-bearing turbo blowers maximize operational efficiency in wastewater treatment and industrial ventilation processes requiring low pressure, by providing high airflow with minimum energy consumption thanks to frictionless air cushion technology.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
850x1500, H1745 mm
WEIGHT
635 kg
MAXIMUM DISCHARGE PRESSURE
800 mbar
MOTOR SHAFT POWER
75 kW
MAXIMUM PACKAGE POWER
85 kW
MINIMUM FLOW RATE
1.650 m³/sa
MAXIMUM FLOW RATE
3.100 m³/sa
L Series air-bearing turbo blowers maximize operational efficiency in wastewater treatment and industrial ventilation processes requiring low pressure, by providing high airflow with minimum energy consumption thanks to frictionless air cushion technology.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
850x1500, H1745 mm
WEIGHT
570 kg
MAXIMUM DISCHARGE PRESSURE
800 mbar
MOTOR SHAFT POWER
55 kW
MAXIMUM PACKAGE POWER
60 kW
MINIMUM FLOW RATE
1.250 m³/sa
MAXIMUM FLOW RATE
2.700 m³/sa
L Series air-bearing turbo blowers maximize operational efficiency in wastewater treatment and industrial ventilation processes requiring low pressure, by providing high airflow with minimum energy consumption thanks to frictionless air cushion technology.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
850x1500, H1745 mm
WEIGHT
500 kg
MAXIMUM DISCHARGE PRESSURE
800 mbar
MOTOR SHAFT POWER
45 kW
MAXIMUM PACKAGE POWER
50 kW
MINIMUM FLOW RATE
1.150 m³/sa
MAXIMUM FLOW RATE
2.550 m³/sa
L Series air-bearing turbo blowers maximize operational efficiency in wastewater treatment and industrial ventilation processes requiring low pressure, by providing high airflow with minimum energy consumption thanks to frictionless air cushion technology.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
850x1350, H1670 mm
WEIGHT
300 kg
MAXIMUM DISCHARGE PRESSURE
800 mbar
MOTOR SHAFT POWER
37 kW
MAXIMUM PACKAGE POWER
42 kW
MINIMUM FLOW RATE
800 m³/sa
MAXIMUM FLOW RATE
1.950 m³/sa
L Series air-bearing turbo blowers maximize operational efficiency in wastewater treatment and industrial ventilation processes requiring low pressure, by providing high airflow with minimum energy consumption thanks to frictionless air cushion technology.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
850x1350, H1670 mm
WEIGHT
270 kg
MAXIMUM DISCHARGE PRESSURE
800 mbar
MOTOR SHAFT POWER
29 kW
MAXIMUM PACKAGE POWER
32 kW
MINIMUM FLOW RATE
725 m³/sa
MAXIMUM FLOW RATE
1.700 m³/sa
M Series medium-pressure air-bearing turbo blowers maximize energy efficiency by offering high-speed operation in medium-pressure applications thanks to frictionless air film technology, and provide a highly reliable solution for precise industrial processes thanks to 100% oil-free air supply.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
850x1350, H1670 mm
WEIGHT
250 kg
MAXIMUM DISCHARGE PRESSURE
1200 mbar
MOTOR SHAFT POWER
22 kW
MAXIMUM PACKAGE POWER
24 kW
MINIMUM FLOW RATE
500 m³/sa
MAXIMUM FLOW RATE
1.100 m³/sa
M Series medium-pressure air-bearing turbo blowers maximize energy efficiency by offering high-speed operation in medium-pressure applications thanks to frictionless air film technology, and provide a highly reliable solution for precise industrial processes thanks to 100% oil-free air supply.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
950x1630, H1900 mm
WEIGHT
950 kg
MAXIMUM DISCHARGE PRESSURE
1200 mbar
MOTOR SHAFT POWER
135 kW
MAXIMUM PACKAGE POWER
150 kW
MINIMUM FLOW RATE
3.000 m³/sa
MAXIMUM FLOW RATE
6.250 m³/sa
M Series medium-pressure air-bearing turbo blowers maximize energy efficiency by offering high-speed operation in medium-pressure applications thanks to frictionless air film technology, and provide a highly reliable solution for precise industrial processes thanks to 100% oil-free air supply.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
950x1630, H1900 mm
WEIGHT
850 kg
MAXIMUM DISCHARGE PRESSURE
1200 mbar
MOTOR SHAFT POWER
95 kW
MAXIMUM PACKAGE POWER
105 kW
MINIMUM FLOW RATE
2.400 m³/sa
MAXIMUM FLOW RATE
4.500 m³/sa
M Series medium-pressure air-bearing turbo blowers maximize energy efficiency by offering high-speed operation in medium-pressure applications thanks to frictionless air film technology, and provide a highly reliable solution for precise industrial processes thanks to 100% oil-free air supply.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
950x1630, H1900 mm
WEIGHT
900 kg
MAXIMUM DISCHARGE PRESSURE
1200 mbar
MOTOR SHAFT POWER
115 kW
MAXIMUM PACKAGE POWER
125 kW
MINIMUM FLOW RATE
2.600 m³/sa
MAXIMUM FLOW RATE
5.250 m³/sa
M Series medium-pressure air-bearing turbo blowers maximize energy efficiency by offering high-speed operation in medium-pressure applications thanks to frictionless air film technology, and provide a highly reliable solution for precise industrial processes thanks to 100% oil-free air supply.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
850x1500, H1745 mm
WEIGHT
635 kg
MAXIMUM DISCHARGE PRESSURE
1200 mbar
MOTOR SHAFT POWER
75 kW
MAXIMUM PACKAGE POWER
85 kW
MINIMUM FLOW RATE
1.300 m³/sa
MAXIMUM FLOW RATE
2.800 m³/sa
M Series medium-pressure air-bearing turbo blowers maximize energy efficiency by offering high-speed operation in medium-pressure applications thanks to frictionless air film technology, and provide a highly reliable solution for precise industrial processes thanks to 100% oil-free air supply.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
850x1500, H1745 mm
WEIGHT
570 kg
MAXIMUM DISCHARGE PRESSURE
1200 mbar
MOTOR SHAFT POWER
55 kW
MAXIMUM PACKAGE POWER
60 kW
MINIMUM FLOW RATE
1.100 m³/sa
MAXIMUM FLOW RATE
2.250 m³/sa
M Series medium-pressure air-bearing turbo blowers maximize energy efficiency by offering high-speed operation in medium-pressure applications thanks to frictionless air film technology, and provide a highly reliable solution for precise industrial processes thanks to 100% oil-free air supply.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
850x1500, H1745 mm
WEIGHT
500 kg
MAXIMUM DISCHARGE PRESSURE
1200 mbar
MOTOR SHAFT POWER
45 kW
MAXIMUM PACKAGE POWER
50 kW
MINIMUM FLOW RATE
1.000 m³/sa
MAXIMUM FLOW RATE
2.250 m³/sa
M Series medium-pressure air-bearing turbo blowers maximize energy efficiency by offering high-speed operation in medium-pressure applications thanks to frictionless air film technology, and provide a highly reliable solution for precise industrial processes thanks to 100% oil-free air supply.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
850x1350, H1670 mm
WEIGHT
300 kg
MAXIMUM DISCHARGE PRESSURE
1200 mbar
MOTOR SHAFT POWER
37 kW
MAXIMUM PACKAGE POWER
42 kW
MINIMUM FLOW RATE
700 m³/sa
MAXIMUM FLOW RATE
1.700 m³/sa
M Series medium-pressure air-bearing turbo blowers maximize energy efficiency by offering high-speed operation in medium-pressure applications thanks to frictionless air film technology, and provide a highly reliable solution for precise industrial processes thanks to 100% oil-free air supply.
TECHNICAL SPECIFICATIONS
DIMENSIONS (Length * Width, Height)
850x1350, H1670 mm
WEIGHT
270 kg
MAXIMUM DISCHARGE PRESSURE
1200 mbar
MOTOR SHAFT POWER
29 kW
MAXIMUM PACKAGE POWER
32 kW
MINIMUM FLOW RATE
650 m³/sa
MAXIMUM FLOW RATE
1.500 m³/sa
*HAUS reserves the right to modify the specifications stated here without prior notice to the customer.
