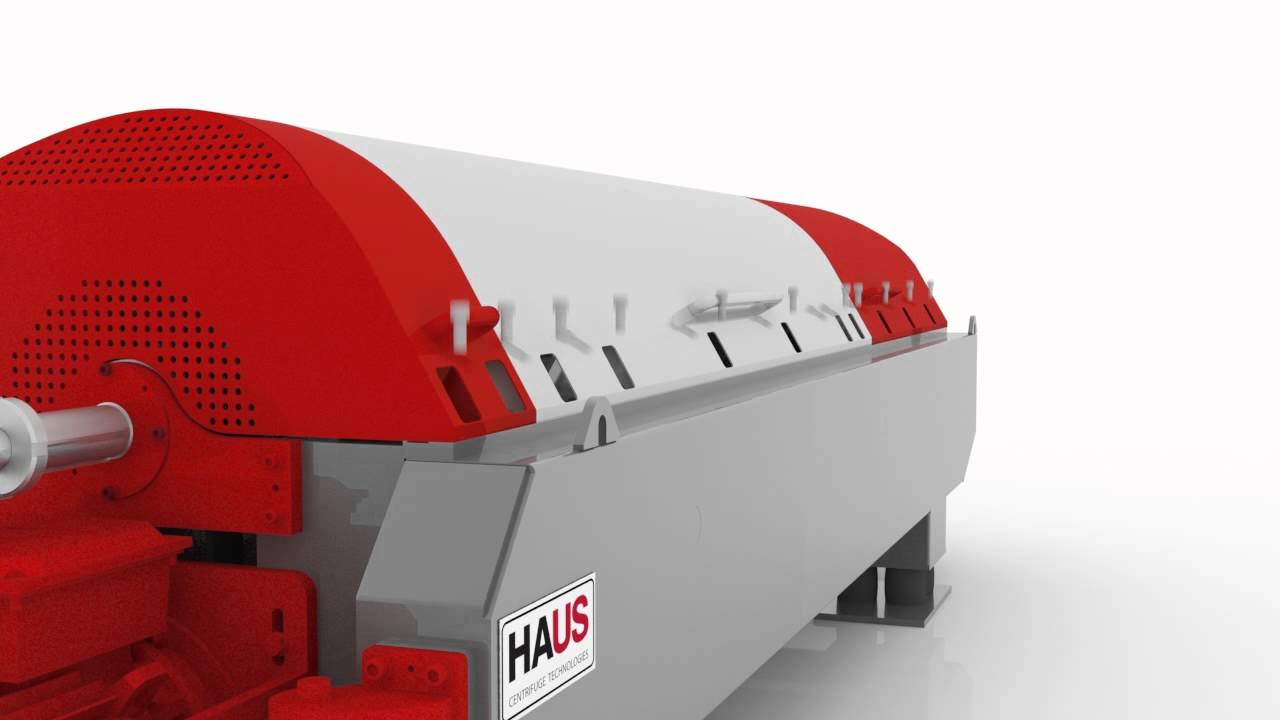

DDI Series is a decanter centrifuge: horizontal rotating bowl, continuous discharging of sludge through scrolling conveyor, dual-drive type, variable differential speed.
DDI series has been designed by HAUS for the general industry demand – chemical, pharma, fats and oil extraction, protein extraction - and for heavy duty application like mining and oil&gas. DDI series main duty is the separation of a liquid mixture from its solid content, to obtain one or two cleaned liquid and/or a sludge as dryer as possible. DDI series is useful in the production of valuable substances, in the byproduct and produced water treatment, and in the recycling process.
PRODUCT MODELS
*HAUS reserves the right to modify the specifications stated here without prior notice to the customer.
PRODUCT SECTION
DDI Series is a decanter centrifuge: horizontal rotating bowl, continuous discharging of sludge through scrolling conveyor, dual-drive type, variable differential speed.
DDI series has been designed by HAUS for the general industry demand – chemical, pharma, fats and oil extraction, protein extraction - and for heavy duty application like mining and oil&gas. DDI series main duty is the separation of a liquid mixture from its solid content, to obtain one or two cleaned liquid and/or a sludge as dryer as possible. DDI series is useful in the production of valuable substances, in the byproduct and produced water treatment, and in the recycling process.
Maximum Performence
High G Force: a bowl, rotating at very high speed
Flexible Configuration
Multiple choice of material of construction, wear protection, motor power, gearbox torque
Touch Panel
PLC with HMI: to set different automatic mode, to adjust the sludge dryness and other operational parameters, to monitor alarms
Wear Resistance
Long life usage with wear resistance options specific to high abrasive processes
Product Based Performance
Variable Solid Conveying Speed: to handle different solid quantity with desired dryness
Dual Drive
A main motor moving the bowl , and a secondary motor moving the conveyor, both driven by Frequency Converter (VFD) and linked by a high torque gearbox without friction clutch
PRODUCT MODELS
DDI 2342 / DDI 2343 is useful in the production of valuable substances, in the byproduct and produced water treatment, and in the recycling process.
| TECHNICAL SPECIFICATIONS | |
| INSTALLED MOTOR POWER | 9,7 kW / 11,5 kW |
| DIMENSIONS (Length * Width, Height) | 2410x660, 955 mm |
| WEIGHT | 900 kg |
DDI 3042 is useful in the production of valuable substances, in the byproduct and produced water treatment, and in the recycling process.
| TECHNICAL SPECIFICATIONS | |
| INSTALLED MOTOR POWER | 19 kW / 24 kW |
| DIMENSIONS (Length * Width, Height) | 2973X805, 1035 mm |
| WEIGHT | 1250 kg |
DDI 3532 / DDI 3533 is useful in the production of valuable substances, in the byproduct and produced water treatment, and in the recycling process.
| TECHNICAL SPECIFICATIONS | |
| INSTALLED MOTOR POWER | 19 kW / 24 kW |
| DIMENSIONS (Length * Width, Height) | 3210x890, 1090 mm |
| WEIGHT | 1750 kg |
DDI 3542 / DDI 3543 is useful in the production of valuable substances, in the byproduct and produced water treatment, and in the recycling process.
| TECHNICAL SPECIFICATIONS | |
| INSTALLED MOTOR POWER | 24 kW / 45 kW |
| DIMENSIONS (Length * Width, Height) | 3590x890, 1090 mm |
| WEIGHT | 1650 kg |
DDI 4042 / DDI 4043 is useful in the production of valuable substances, in the byproduct and produced water treatment, and in the recycling process.
| TECHNICAL SPECIFICATIONS | |
| INSTALLED MOTOR POWER | 41 kW / 45 kW |
| DIMENSIONS (Length * Width, Height) | 3930x1000, 1115 mm |
| WEIGHT | 2200 kg |
DDI 4742 / DDI 4743 is useful in the production of valuable substances, in the byproduct and produced water treatment, and in the recycling process.
| TECHNICAL SPECIFICATIONS | |
| INSTALLED MOTOR POWER | 52 kW / 60 kW |
| DIMENSIONS (Length * Width, Height) | 4700x1120, 1370 mm |
| WEIGHT | 4200 kg |
DDI 5342 / DDI 5343 is useful in the production of valuable substances, in the byproduct and produced water treatment, and in the recycling process.
| TECHNICAL SPECIFICATIONS | |
| INSTALLED MOTOR POWER | 70 kW / 120 kW |
| DIMENSIONS (Length * Width, Height) | 5415x1565, 1510 mm |
| WEIGHT | 6200 kg |
DDI 6542 / DDI 6543 is useful in the production of valuable substances, in the byproduct and produced water treatment, and in the recycling process.
| TECHNICAL SPECIFICATIONS | |
| INSTALLED MOTOR POWER | 127 kW / 177 kW |
| DIMENSIONS (Length * Width, Height) | 5388x2306, 1676 mm |
| WEIGHT | 9700 kg |
DDI 8242 / DDI 8243 is useful in the production of valuable substances, in the byproduct and produced water treatment, and in the recycling process.
| TECHNICAL SPECIFICATIONS | |
| INSTALLED MOTOR POWER | 177 kW / 197 kW |
| DIMENSIONS (Length * Width, Height) | 6135x2465, 1750 mm |
| WEIGHT | 15500 kg |
