Medium Pressure · M Series
HAUS Turbo Blower, a Centrifugal Compressor with Magnetic Bearing and Variable Speed, is one of the most advanced technology blower on the market. M Series is the medium pressure turbo blowers.

Blowers and Air Compressors are extensively used in the waste water plant for the aeration of ventilation pools and the sludge treatment in general, as well as in many industrial processes which need aeration. Magnetic bearing technology is available today able to save up to 40% in terms of operational cost in respect to conventional technology. Thanks to today's technology, it is possible to work in a wider capacity range, flow and energy optimization due to oxygen demand, low noise level, intelligent control and remote monitoring features.

Proven low maintenance and operating costs. Thanks to its compact design, it can easily be installed in small spaces. It is possible to present this technology under competitive conditions with domestic and high standards of mass production facilities. HAUS Turbo Blower is an innovative solution that improves process efficiency and at the same time provides consistent energy and maintenance savings and pays the initial investment cost in a very short time. HAUS constantly develops products for energy saving and more efficient processes by supporting the sustainable growth of its customers.



All in one
All in one
Easy to install
Easy to install
Industry 4.0 Advanced
Industry 4.0 Advanced
High Effifciency Compressor
High Effifciency Compressor
High speed
High speed
Contactless
Contactless
No lubrication
No lubrication
Unlimited Start&Stop
Unlimited Start&Stop




PRODUCT MODELS
M Series is the medium pressure turbo blowers.



TECHNICAL SPECS
DIMENSIONS (Length * Width, Height) 2200x2000, 2200 mm
WEIGHT 3600 kg
MIN DISCHARGE PRESSURE 1200 mbar
MOTOR SHAFT POWER 350 kW
MAX PACKAGE POWER 400 kW
MIN FLOW 5.000 m³/h
MAX FLOW 15.000 m³/h


TECHNICAL SPECS
DIMENSIONS (Length * Width, Height) 2200x2000, 2200 mm
WEIGHT 3600 kg
MIN DISCHARGE PRESSURE 1200 mbar
MOTOR SHAFT POWER 250 kW
MAX PACKAGE POWER 300 kW
MIN FLOW 4.200 m³/h
MAX FLOW 12.000 m³/h


TECHNICAL SPECS
DIMENSIONS (Length * Width, Height) 1800x1500, 1900 mm
WEIGHT 2600 kg
MIN DISCHARGE PRESSURE 1200 mbar
MOTOR SHAFT POWER 170 kW
MAX PACKAGE POWER 200 kW
MIN FLOW 2.800 m³/h
MAX FLOW 8.500 m³/h
*HAUS, reserves the right to modify the specifications herein at anytime without prior notice.



PRODUCT SLICE

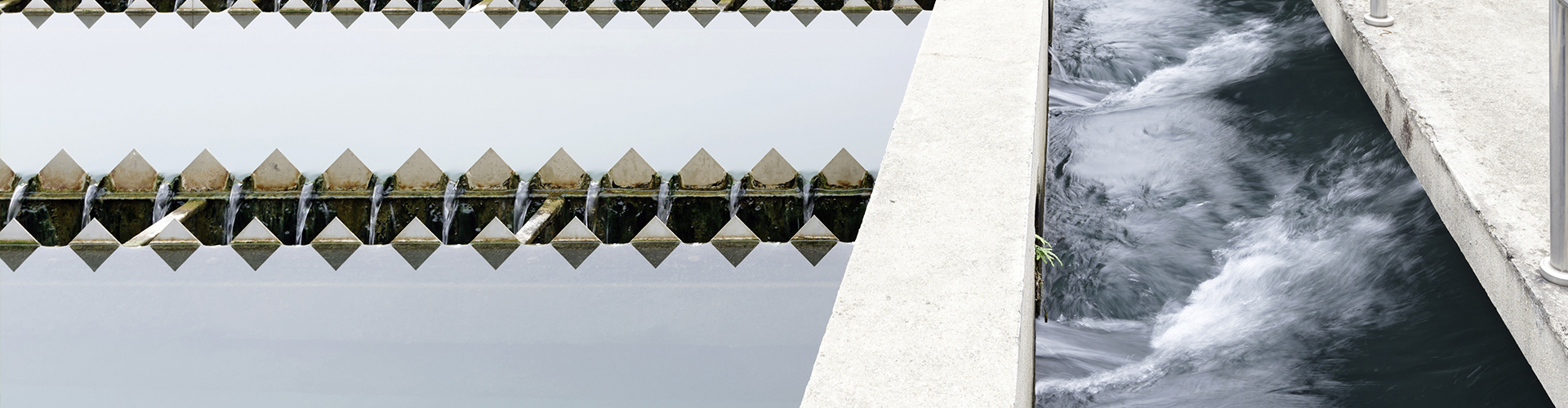

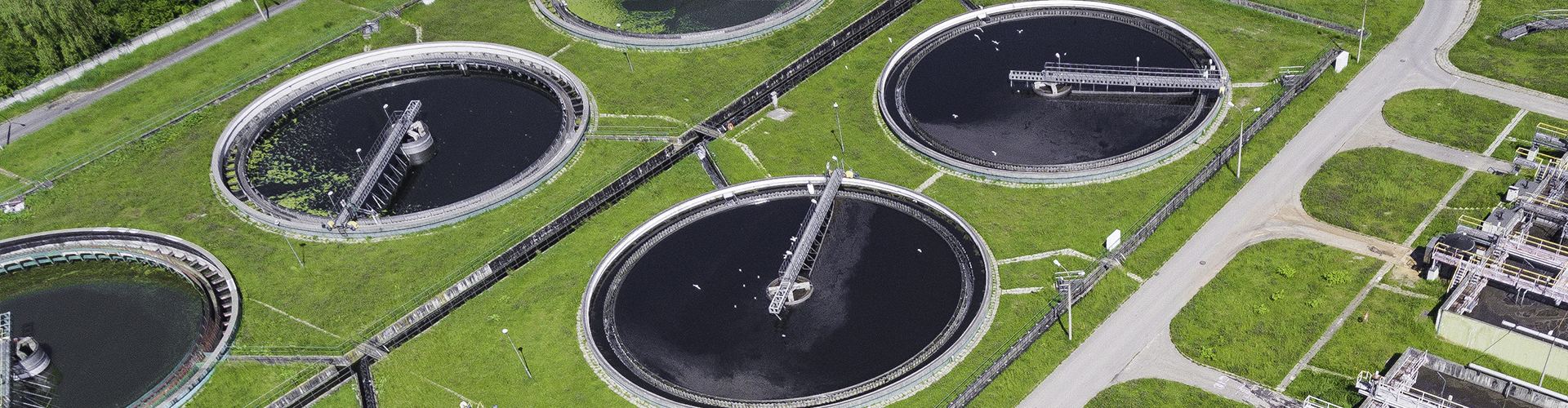

APPLICATIONS OF THE PRODUCT
